Performance meets CAT5e Industrial Ethernet applications such as machines, equipment, instruments and control cabinets

Conductor: stranded tinned copper conductor

Insulation: PE

Color: White, yellow, blue, orange four-core star structure

Inner sheath: FRNC

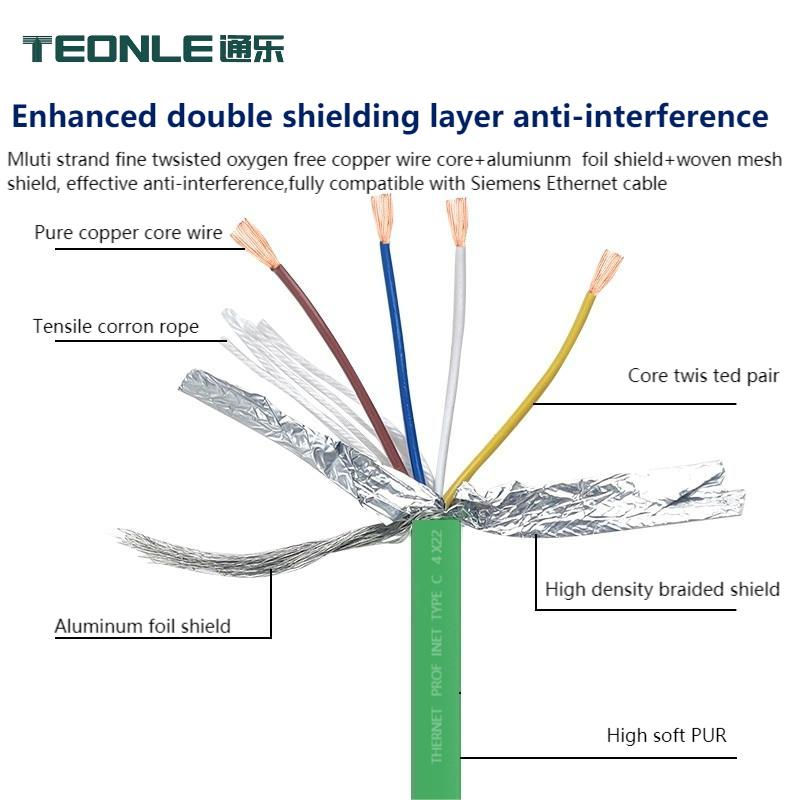

Shielding: aluminum foil wrapped with tinned copper braid

Outer sheath: PUR

Color: Green (approximate RAL6018)

Approximate outside diameter :6.5mm

Applied to power towing chains

Suitable for machine, tools, equipment, fixtures, electrical appliances and control cabinet wiring system

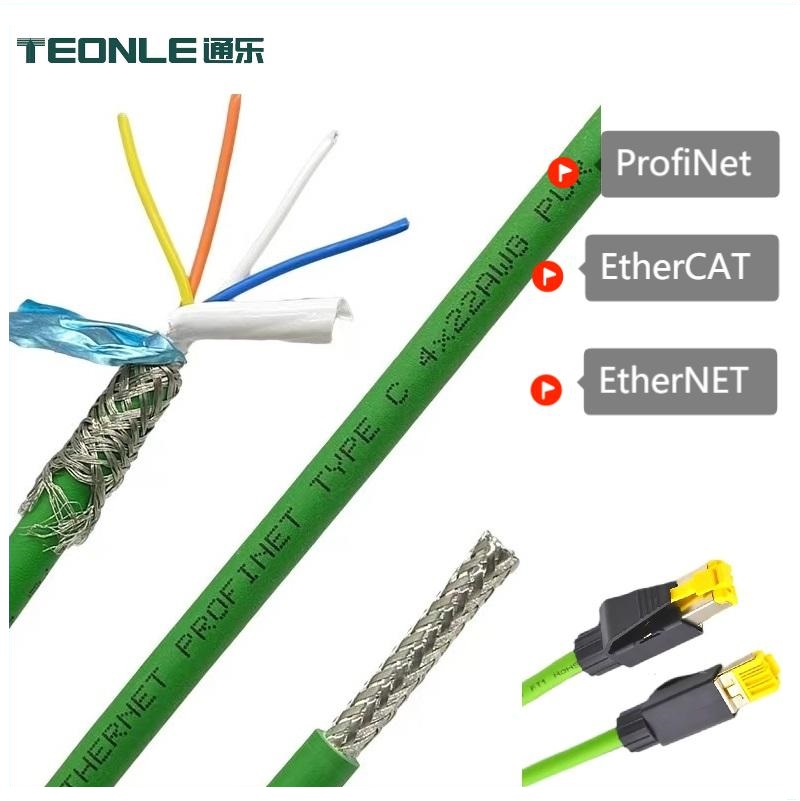

Suitable for EtherCAT and EtherNet/IP profinet PN PNET applications

Industrial Ethernet cable Cat5e for highly flexible applications for PROFINET applications Type C; 4xAWG22/19 Suitable for PROFINET

PROFINET protocol for a wide range of industrial Ethernet applications, such as machines, equipment, instruments and control cabinet wiring, performance compliance with CAT5e. Suitable for towing chain applications, or for frequent movement. Robot motion control applications can be used for EtherCAT and EtherNet/IP applications

-- temperature range

Fixed application: PUR:-40℃ to 80℃

Mobile application: PUR:-5 ° C to 70 ° C

-- Test voltage 2000V/min(AC)

-- Characteristic impedance 100±15Ω

-- conductor DC resistance (20℃)

-- Bending radius ≤60Ω/km
