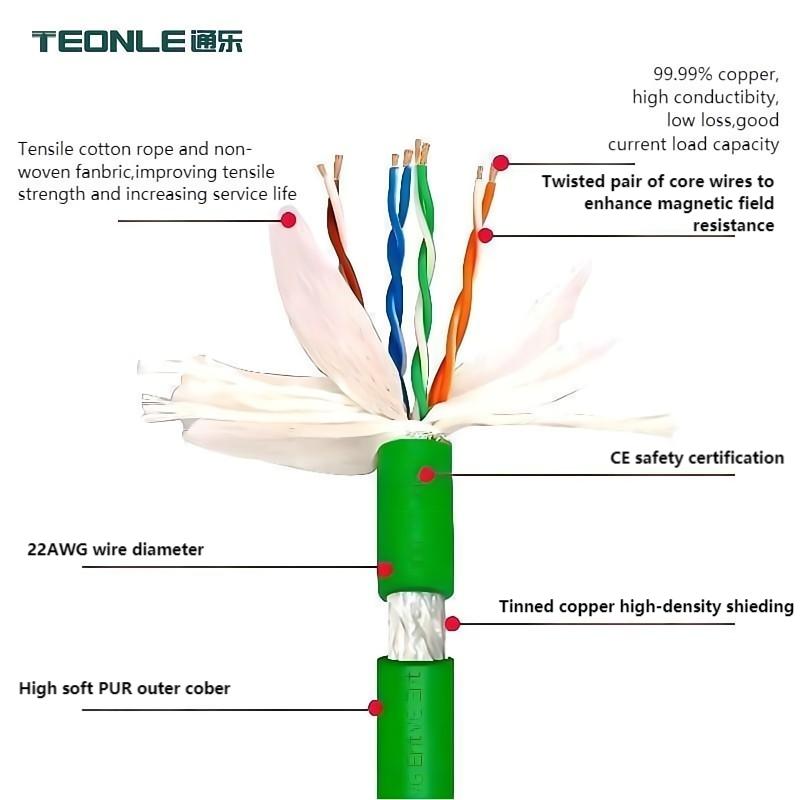

Industrial grade Ethernet Cable Profinet/EtherCat CAT6ACAT5 Gigabit shielded servo Flexible

Conductor: stranded tinned copper conductor

Insulation: PE

Color: star structure

Inner sheath: FRNC

Shielding: aluminum foil wrapped with tinned copper braid

Outer sheath: PUR

Color: Green (approximate RAL6018)

The PROFINET protocol is used in a wide range of industrial Ethernet applications, such as wiring machines, equipment, instruments and control cabinets. The performance conforms to CAT5e.6e for towed chain applications, or for frequent movement applications. Robot motion control applications can be used for EtherCAT and EtherNet/IP applications

-- temperature range

Fixed application: PUR:-40℃ to 80℃

Mobile application: PUR:-5 ° C to 70 ° C

-- Test voltage 2000V/min(AC)

-- Characteristic impedance 100±15Ω

-- conductor DC resistance (20℃)

Conductor: stranded tinned copper conductor

Insulation: PE

Color: star structure

Inner sheath: FRNC

Shielding: aluminum foil wrapped with tinned copper braid

Outer sheath: PUR

Color: Green (approximate RAL6018)
