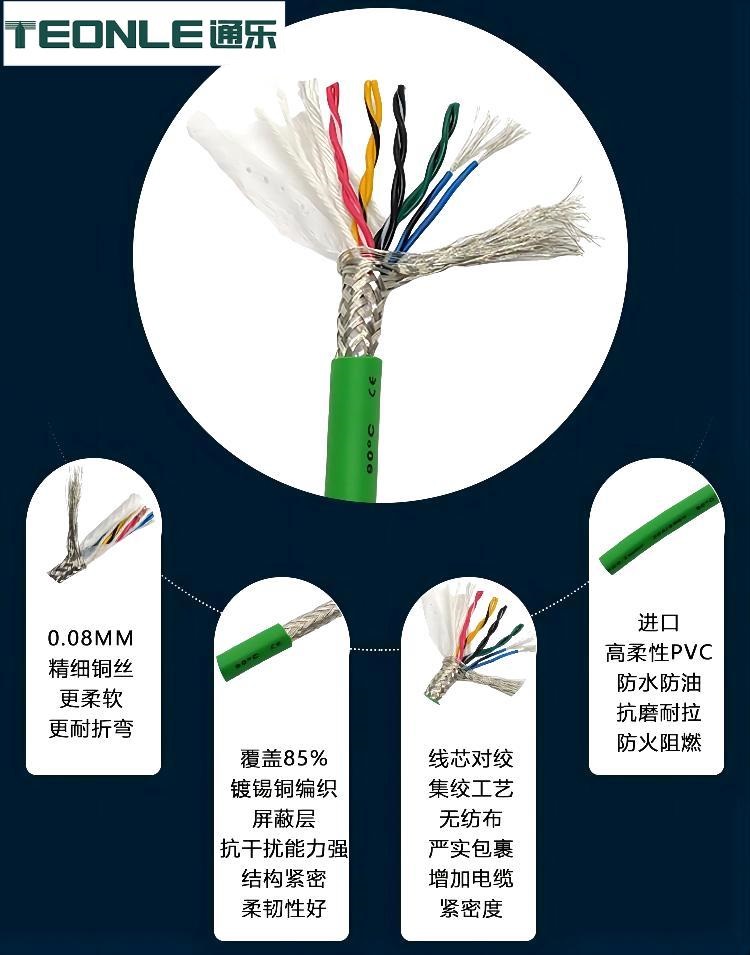

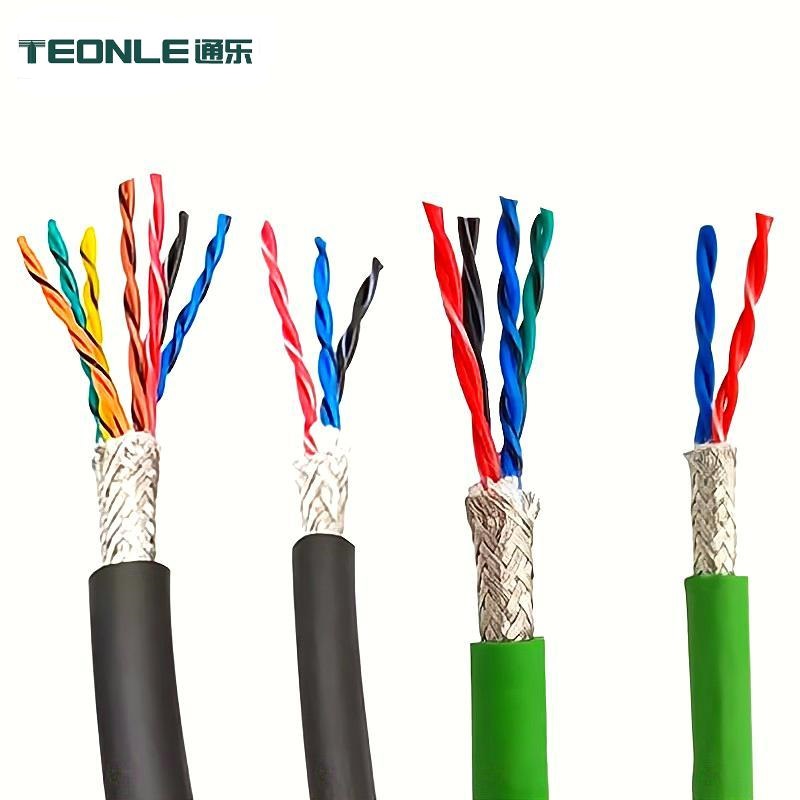

伺服编码器线、双绞屏蔽信号线
适合用于：数控机床制造、机器人控制系统、伺服系统、工业自动化等设备中
长期处于拖链往复运动用的信号传输电缆
| 产品编号 | 产品规格 | 绝缘直径 | 电缆直径 | 导体直流电阻 |
| TRVVSP2*2*0.15 | 2*2*0.15 | 1.0mm | 5.7mm | 140 |
| TRVVSP3*2*0.15 | 3*2*0.15 | 1.0mm | 6.2mm | 140 |
| TRVVSP4*2*0.15 | 4*2*0.15 | 1.0mm | 6.7mm | 140 |
| TRVVSP5*2*0.15 | 5*2*0.15 | 1.0mm | 7.2mm | 140 |
| TRVVSP6*2*0.15 | 6*2*0.15 | 1.0mm | 7.4mm | 140 |
| TRVVSP7*2*0.15 | 7*2*0.15 | 1.0mm | 7.9mm | 140 |
| TRVVSP2*2*0.2 | 2*2*0.2 | 1.1mm | 5.9mm | 111 |
| TRVVSP3*2*0.2 | 3*2*0.2 | 1.1mm | 6.5mm | 111 |
| TRVVSP4*2*0.2 | 4*2*0.2 | 1.1mm | 7.0mm | 111 |
| TRVVSP5*2*0.2 | 5*2*0.2 | 1.1mm | 7.6mm | 111 |
| TRVVSP6*2*0.2 | 6*2*0.2 | 1.1mm | 7.9mm | 111 |
| TRVVSP7*2*0.2 | 7*2*0.2 | 1.1mm | 8.3mm | 111 |
| TRVVSP2*2*0.25 | 2*2*0.25 | 1.15mm | 6.2mm | 87.6 |
| TRVVSP3*2*0.25 | 3*2*0.25 | 1.15mm | 6.9mm | 87.6 |
| TRVVSP4*2*0.25 | 4*2*0.25 | 1.15mm | 7.5mm | 87.6 |
| TRVVSP5*2*0.25 | 5*2*0.25 | 1.15mm | 7.8mm | 87.6 |
| TRVVSP6*2*0.25 | 6*2*0.25 | 1.15mm | 8.2mm | 87.6 |
| TRVVSP7*2*0.25 | 7*2*0.25 | 1.15mm | 8.8mm | 87.6 |
| TRVVSP2*2*0.3 | 2*2*0.3 | 1.20mm | 7.1mm | 69.2 |
| TRVVSP3*2*0.3 | 3*2*0.3 | 1.20mm | 7.1mm | 69.2 |
| TRVVSP4*2*0.3 | 4*2*0.3 | 1.20mm | 7.8mm | 69.2 |
| TRVVSP5*2*0.3 | 5*2*0.3 | 1.20mm | 8.0mm | 69.2 |
| TRVVSP6*2*0.3 | 6*2*0.3 | 1.20mm | 8.6mm | 69.2 |
| TRVVSP7*2*0.3 | 7*2*0.3 | 1.20mm | 9.0mm | 69.2 |
| TRVVSP2*2*0.34 | 2*2*0.34 | 1.30mm | 6.9mm | 55.4 |
| TRVVSP3*2*0.34 | 3*2*0.34 | 1.30mm | 7.6mm | 55.4 |
| TRVVSP4*2*0.34 | 4*2*0.34 | 1.30mm | 8.3mm | 55.4 |
| TRVVSP5*2*0.34 | 5*2*0.34 | 1.30mm | 8.8mm | 55.4 |
| TRVVSP6*2*0.34 | 6*2*0.34 | 1.30mm | 9.1mm | 55.4 |
| TRVVSP7*2*0.34 | 7*2*0.34 | 1.30mm | 9.6mm | 55.4 |
| TRVVSP2*2*0.5 | 2*2*0.5 | 1.65mm | 7.9mm | 43.6 |
| TRVVSP3*2*0.5 | 3*2*0.5 | 1.65mm | 9.1mm | 43.6 |
| TRVVSP4*2*0.5 | 4*2*0.5 | 1.65mm | 10.0mm | 43.6 |
| TRVVSP5*2*0.5 | 5*2*0.5 | 1.65mm | 10.7mm | 43.6 |
| TRVVSP6*2*0.5 | 6*2*0.5 | 1.65mm | 10.9mm | 43.6 |
| TRVVSP7*2*0.5 | 7*2*0.5 | 1.65mm | 11.8mm | 43.6 |
